Product information
- Name: HRC60
- Download Catalogue

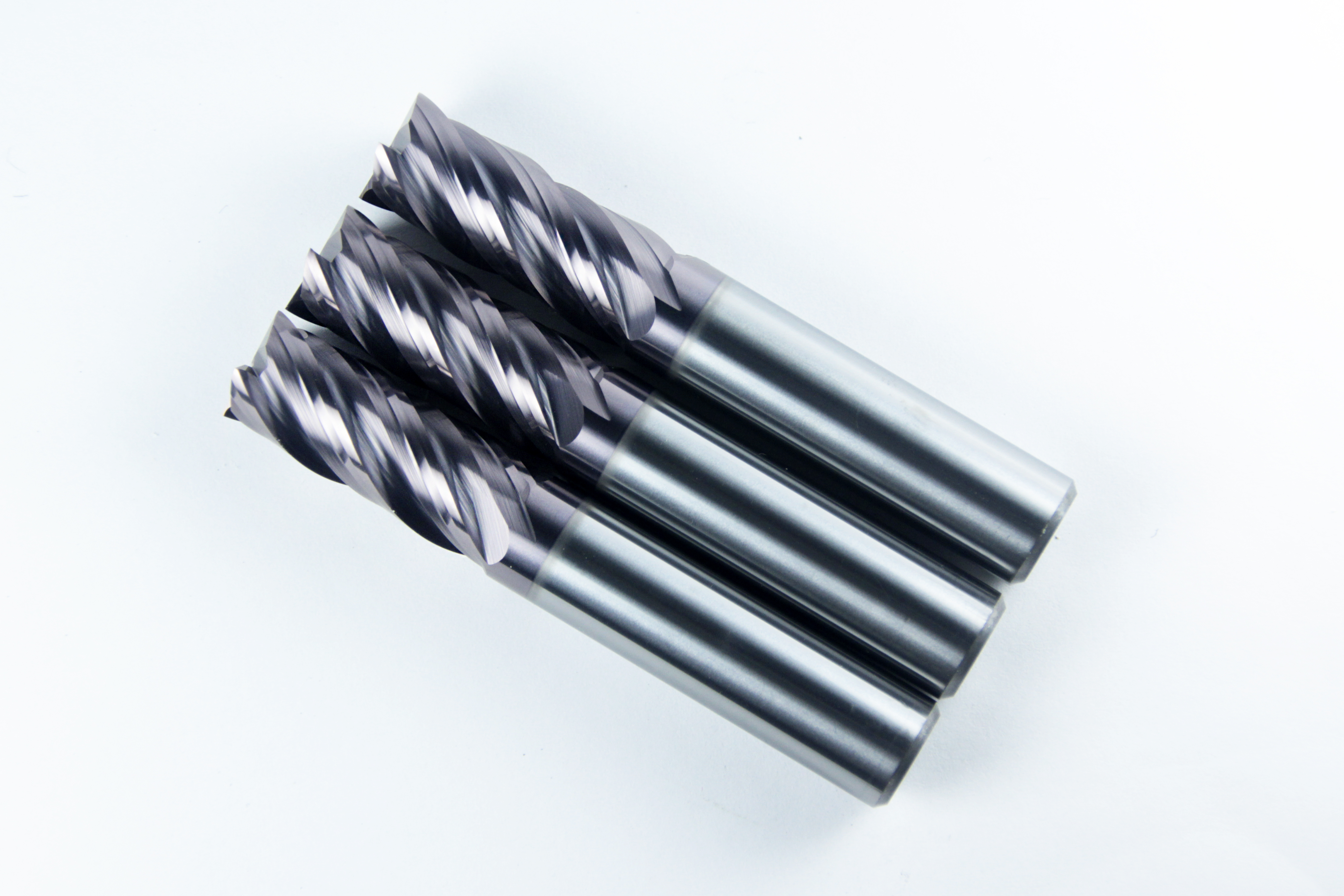

60 HRC Series 2/4 Flute Square End Mill
WC=87 Co=13 TRS Min=4200N/mm² HRA=92.4 Grain Size 0.4 µm
| HRC | Dia(d) | Total Length(L) | Cutting Length(l) | Shank Dia(D) | Flute(Z) |
| 60 | 1 | 50 | 2.5 | 4 | 2 or 4 |
| 60 | 1.5 | 50 | 4 | 4 | 2 or 4 |
| 60 | 2 | 50 | 5 | 4 | 2 or 4 |
| 60 | 2.5 | 50 | 7 | 4 | 2 or 4 |
| 60 | 3 | 50 | 8 | 4 | 2 or 4 |
| 60 | 3.5 | 50 | 9 | 4 | 2 or 4 |
| 60 | 4 | 50 | 10 | 4 | 2 or 4 |
| 60 | 4 | 75 | 13 | 4 | 2 or 4 |
| 60 | 4 | 100 | 16 | 4 | 2 or 4 |
| 60 | 4.5 | 50 | 11.5 | 6 | 2 or 4 |
| 60 | 5 | 50 | 13 | 6 | 2 or 4 |
| 60 | 6 | 50 | 15 | 6 | 2 or 4 |
| 60 | 6 | 75 | 20 | 6 | 2 or 4 |
| 60 | 6 | 100 | 24 | 6 | 2 or 4 |
| 60 | 8 | 60 | 20 | 8 | 2 or 4 |
| 60 | 8 | 75 | 26 | 8 | 2 or 4 |
| 60 | 8 | 100 | 32 | 8 | 2 or 4 |
| 60 | 10 | 75 | 25 | 10 | 2 or 4 |
| 60 | 10 | 100 | 40 | 10 | 2 or 4 |
| 60 | 12 | 75 | 30 | 12 | 2 or 4 |
| 60 | 12 | 100 | 45 | 12 | 2 or 4 |
| 60 | 14 | 100 | 45 | 14 | 2 or 4 |
| 60 | 16 | 100 | 45 | 16 | 2 or 4 |
| 60 | 18 | 100 | 45 | 18 | 2 or 4 |
| 60 | 20 | 100 | 45 | 20 | 2 or 4 |
